jre*
jre
jrel
nop
rete
pause

2 0000 - Relative Jump🔗

private opcode

(jre* z c)


c = bb68-ccc

  z : (integer-in -256 255)
  c : (integer-in 0 7)

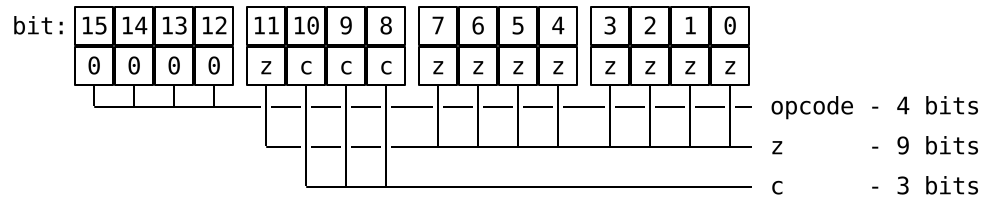

 mask: f000

value: 0000

Performs a relative jump with a fixed delta of -256..+255 words.

According to the condition ”c”, the jump can be unconditional (c == 100) or depend on an ALU flag Z (c == 001), C (c == 010), S (c == 011), or its inverse (NZ: c == 101, NC: c == 110, NS: c == 111).

(The c == 000 condition would mean a jump that is never taken, and is used as a predefined empty operation; the macroinstruction NOP translates to this.)

macro opcode

(jre ccc:bb68-ccc pos)

macro opcode

(jrel ccc:bb68-ccc pos scratch:bb68-gprp)

Long jre that can jump to everywhere, not just a few memory locations away. The scratch parameter specifies a register pair that can be used for the indirect jump.

macro opcode

(nop)

A predefined empty operation that does not affect the CPU state but consumes appropriate CPU cycles.

Internally, this is a macro that translates to JRE with zero delta and condition c == 000, which is equivalent to two zero bytes in the machine code.

macro opcode

(rete)

Returns from an exception or interrupt handler.

Restores flags, clears lower half of %emcf, and jumps to %erets:%eretp.

After this instruction is fully processed, the INT_ACK pin of the CPU that was held low during interrupt processing, will return to high state, indicating that the CPU is ready to process another interrupt.

macro opcode

(pause)

stop execution and wait for an interrupt
